The Universal crusher

The main purpose:

  The machine is widely used in pharmaceutical, food, chemical and other industries crushed material.



working principle:

  The machine uses the relative movement between the movable gear and the fixed gear, so that the material through the tooth plate impact, friction, shear, the impact of each material and get crushed.



Features:

1. The whole machine is designed according to GMP standard, all made of stainless steel.

2. The machine structure is simple, high energy and low consumption, easy to clean, is the ideal crushing equipment.

3. To meet the demand for grinding below room temperature, you can load the water jacket [as shown below].

4. Large and small specifications complete, both to adapt to large and medium-sized institutions, hospital laboratory minicomputer, can also produce large-scale assembly line equipment.

Technical Parameters



Model	Production capacity（kg/h）	Spindle speed （r/min）	Feeding size（mm）	Fineness of products (mesh)	Motor Power (kw)	Weight (kg)	Overall dimension (mm)
MCN-40	min160- max 800kg/h	3400	<10	20-120	11	450	900x800x1550

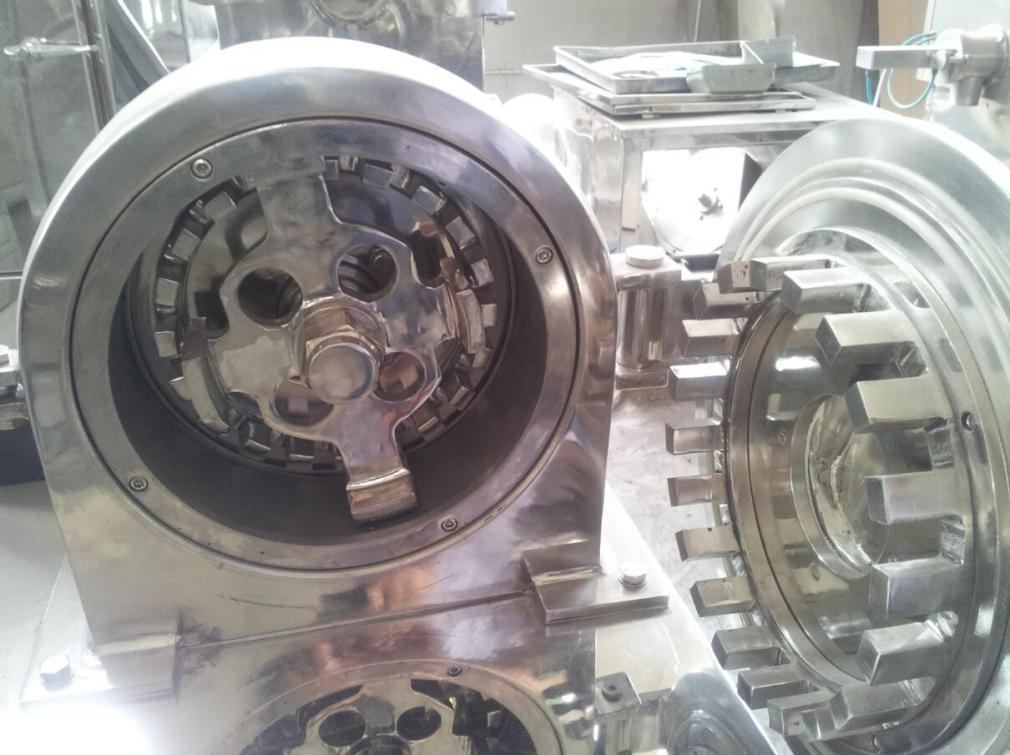

Internal structure picture

Smashing effect map

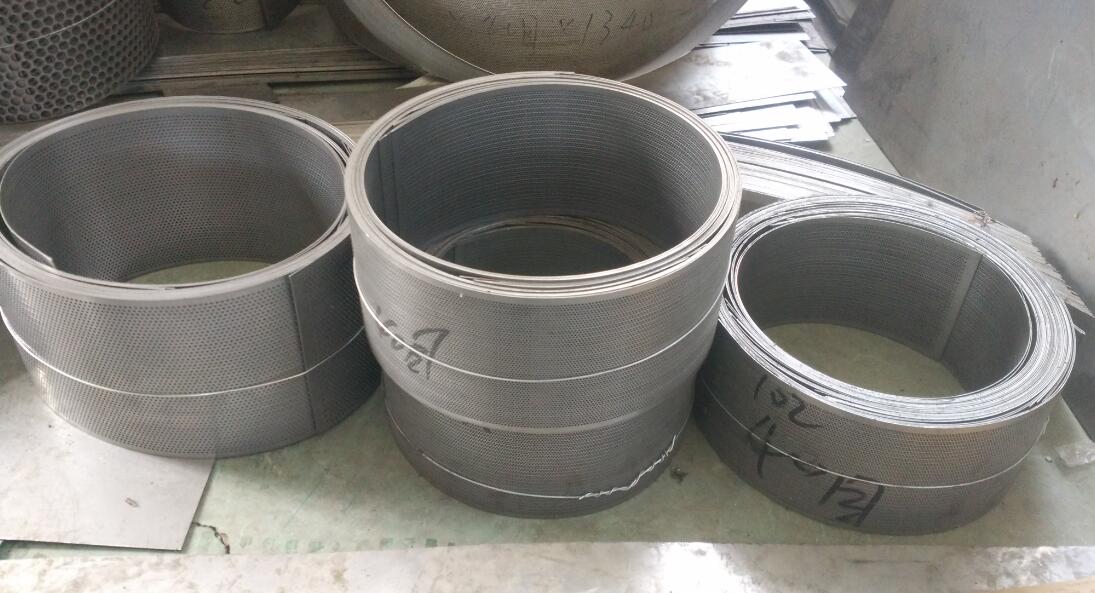

Mesh
