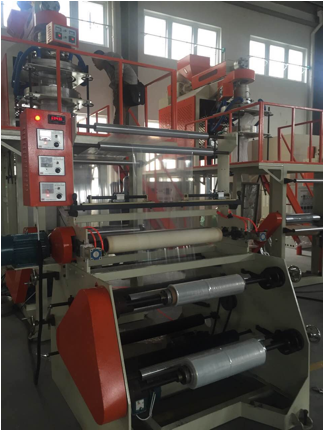

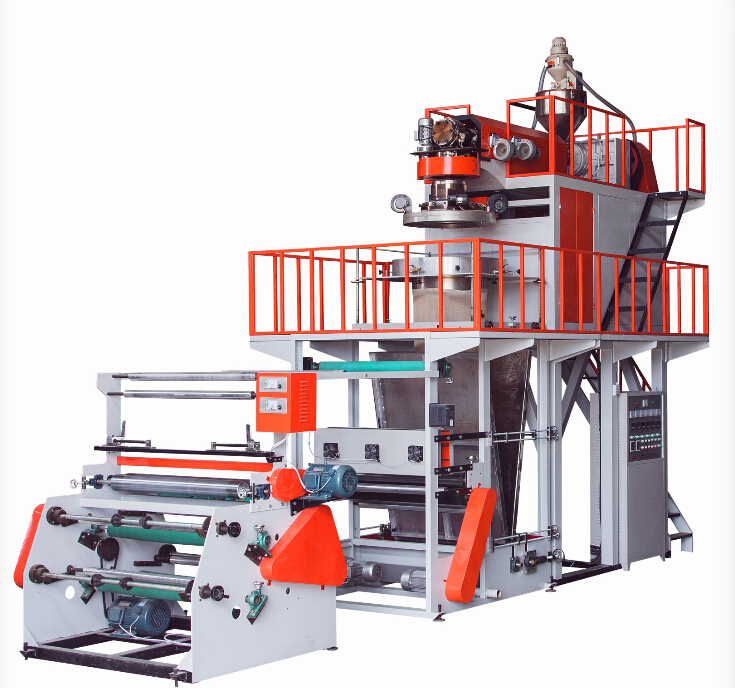

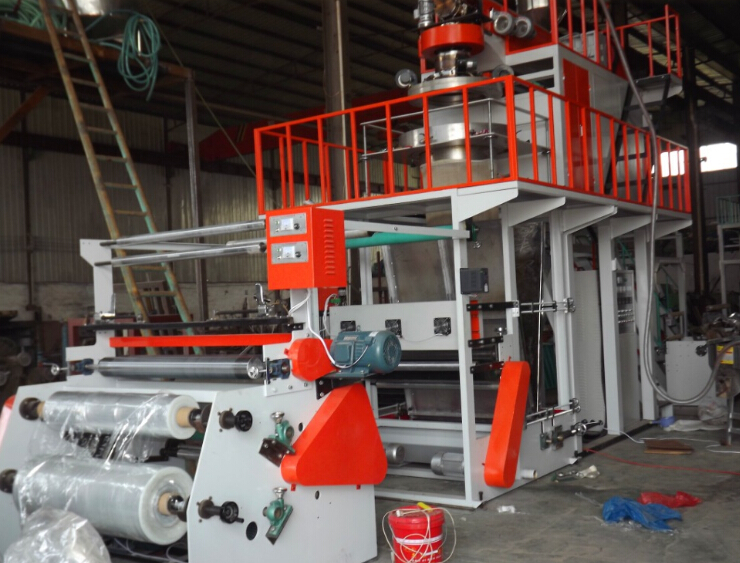

SJF-65 PP & PE film blowing machine

(with Rotary Die Head, Double Winding Station, Control Cabinet, Auto Loader)

Max folding Width of film: 800mm

Output capacity: 50-60kg/h







Characteristic：

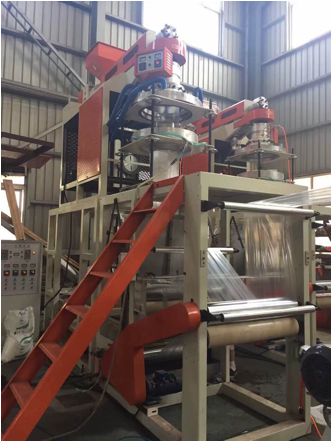

1. Rotary Die Head

-One die

-three sets Water ring to make 600mm,700mm,800mm width (if you want to make more width film,please tell us,we will quote you the prices)

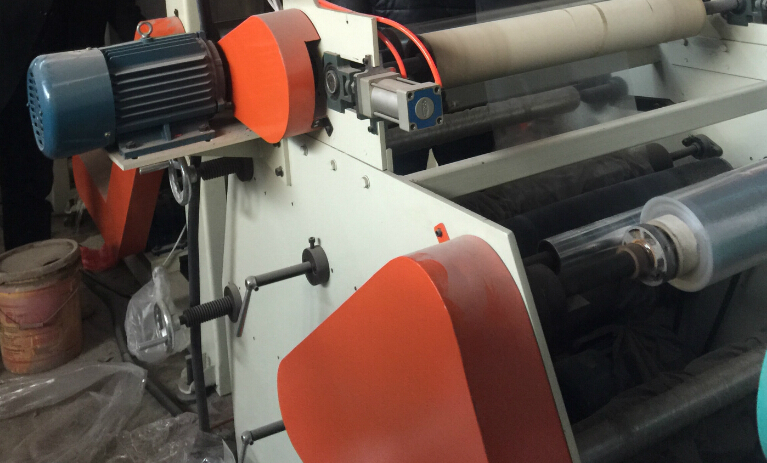

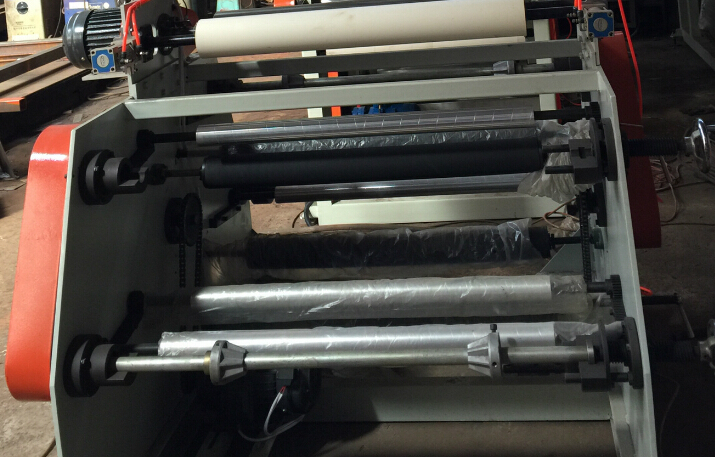

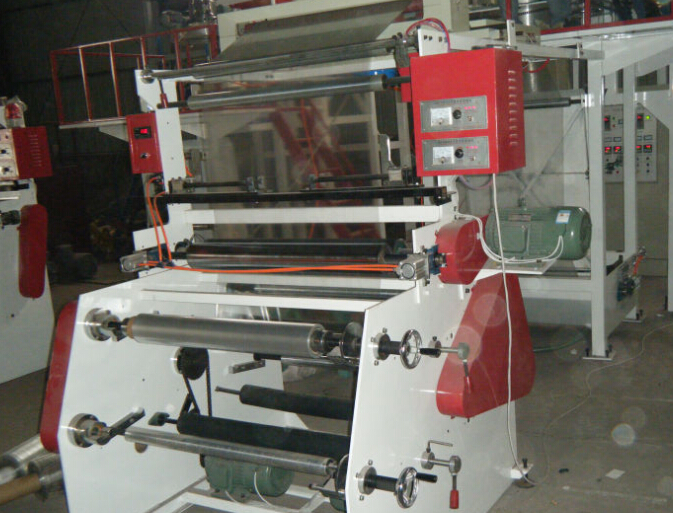

2. Double Winding Station

With banana roller

Winding motor: torque motor control

With 4pcs air shaft

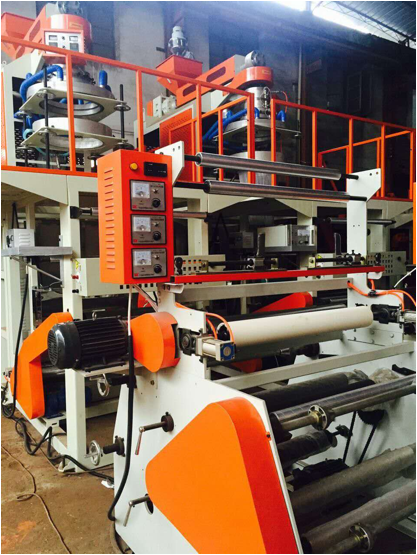

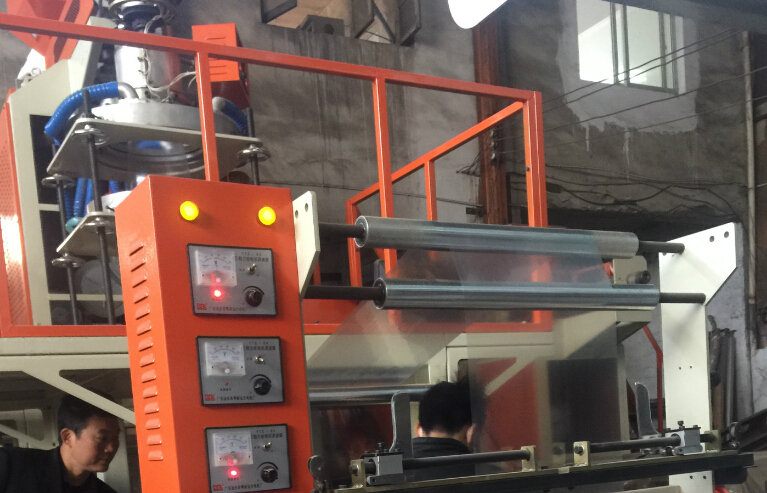

3. Control Cabinet

1). Temperature of screw automatically controlled ( 3 zones)

2). Independent switches controls including amp, rpm and m/min meters

for the whole machine.











Main Technical:

Model	SJF-65
Max folding Width of film	200mm-800mm
Main motor power	5 kw(Inverter motor)
Cooling   fan	0.75kw
Diameter of screw	65mm
L/D ratio of screw	28:1
Speed of screw	5-100rpm
Barrel cooling	1/6 Hp blower*2
Film thickness	0.01-0.10mm
Output capacity	50-60kg/h
Screen filter	Mechanical screen changer

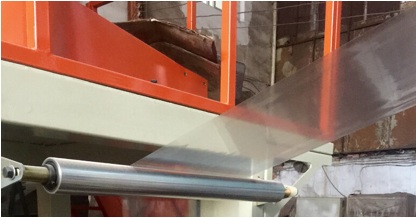

Diameter Traction roller	158mm
Air ring   diameter	810mm
Diameter   head	300mm
Material of screw and barrel	Alloyed high quality steel   38CrMoAlA with optimum hardness and strong corrosion resistance after   precision finishing and nitrogen treatment
Filter Changer	Manual
Total Power	22kw
Weight of Machine	5000kg
Machine Dimension	5000x2000x5500mm



Detail for machine:

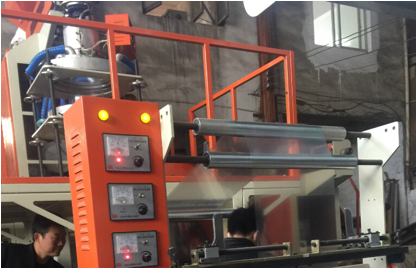

Corona:
